Recursive Treatment of Tree Structures
Recursion is often applied to tree structures, such as lists. Indeed, a list can be described as a tree, whose components are either leaves , or nodes . A leaf is a termination of a tree, a node is another list that can, also, contain leaves of nodes.
We would like to add 1 to each of the atoms of this tree : (( (1 2 3) (4 5 6)) (4) ((6 7))))
In other words, we want to increment – increase the value of – the terminal items of the list. But we cannot just apply om+1 to the list : om+ cannot reach each atom directly. It must go through each level of the tree.
We will apply the following recursive function to the tree :
IncrListElements (LIST) = for each ELEMENT in LIST, do :
- "If element is an atom, then return element + 1." This is the termination condition.
- "Else, apply IncrListElement to the elements." This is the recursive call to IncrListElements.
The result of the function call upon a list is that the whole tree is ran through and that all terminal items will be incremented. This means that the termination condition of a recursive function applying to a tree structure would be to reach a leaf, or extremity of a tree.

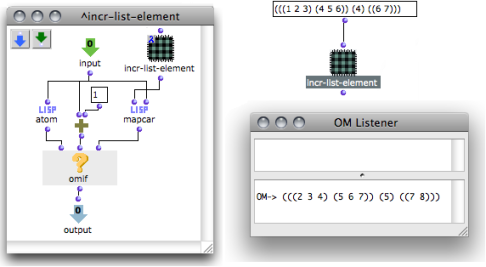

This patch illustrates the previous example :
-
"Input" yields values or lists of values to be processed.
-
If an element is an atom, "input" is incremented directly.
-
If an element is not an atom, – that is, a list –, the patch is applied recursively to each element of the list...
Note that mapcar allows to apply the patch on "lambda" mode successively to each element of a list. An alternative would be using an OMLoop to call the sub patch successively on each element of the list.
