Internal Abstractions

This section shows how to add an internal abstraction into a patch. Internal abstractions are represented by red patch boxes , which are only created in patch editors.

A red patch is autonomous :

  • it is not attached to any external reference, conversely to a blue patch,
  • it only "exists" inside the patch where it was created.

Adding an Internal Abstraction : Procedures

Contextual Menu

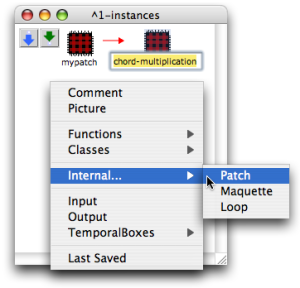

To add an internal – red – patch in a patch editor :

  1. Ctrl / right click in the patch editor

  2. choose Internal / Patch.

Double click on its name to edit it.

Directly in the Patch Editor

To add an internal patch directly in a patch editor :

  • Cmd click in the patch editor
  • type "patch" and validate.
Internal Programming

An internal patch is programmed just as in any patch, without restriction.

Duplicates

An internal abstraction cannot be affected by the modification of a possible duplicate.

Here, a duplicate has been created. The duplicate has been added inputs and outputs. The master item is preserved.
